The OM8828-21 Front-End Module (FEM) offers a complete Power Amplifier (PA) and switching/diplexer solution for advanced 2G/3G/4G cellular handsets.

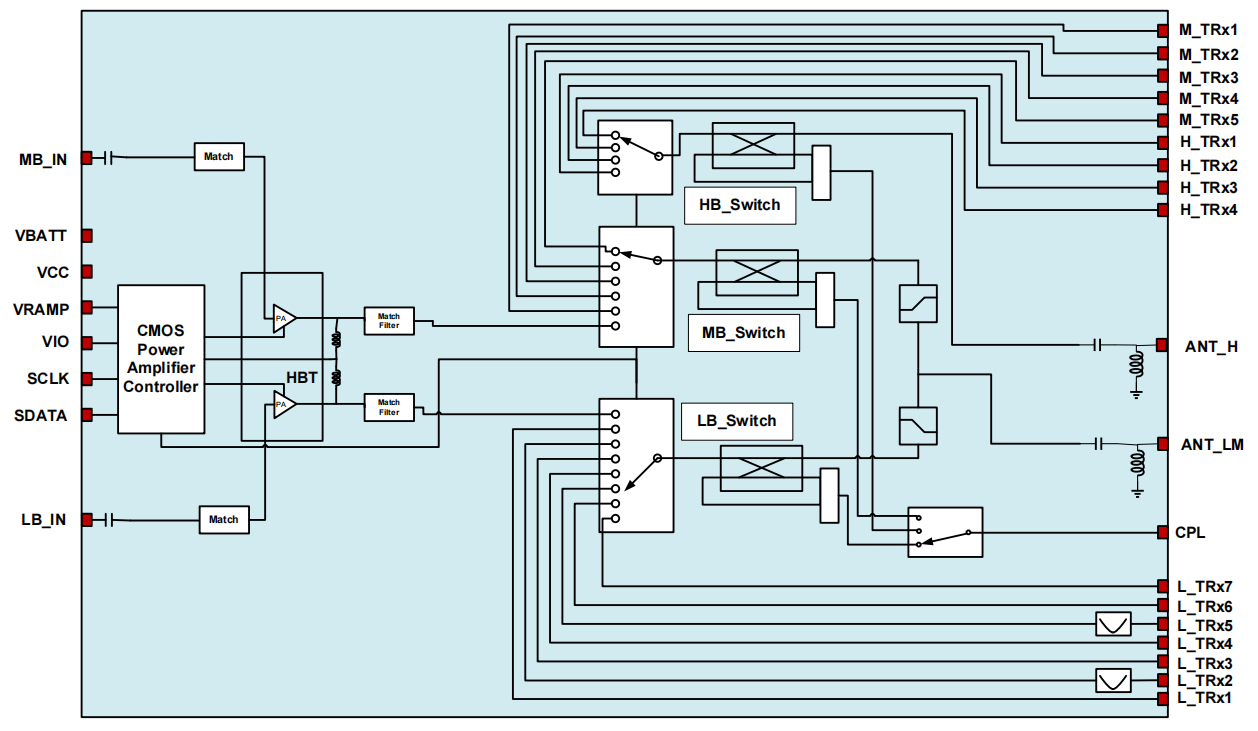

The HBT PAs support quad-band GSM, GPRS, EDGE multi-slot operation and TD-SCDMA and TDD LTE transmission. The FEM provides 16 TX/RX RF switch ports covering all 3G/4G bands from 700MHz through 2300-2700MHz. The OM8828-21 uses a MIPI RFFE interface for PA and switch controls. With support of downlink inter-band Carrier Aggregation (CA), three switching blocks separated into 7 LB ports, 5 MB ports and 4 HB ports. Each switch block has an integrated directional coupler that may be monitored on the CPL port with selectable forward or reverse directionality. A built-in diplexer provides simultaneous LB and MB reception required for downlink CA at the single antenna port ANT_LM. The high band has the dedicated antenna port ANT_H.
The OM8828-21 provides the support both for the linear-GMSK mode and VRAMP-based mode operation. A MIPI RFFE controller operates all functions including selection of PA band/Mode/Bias and Switch configuration. Selecting VRAMP-enabled operation, the PA controller provides VRAMP control of the GMSK envelope and reduces sensitivity to input drive, temperature, power supply. In EDGE, TD-SCDMA and TDD LTE linear modes, VRAMP voltage and MIPI-based bias settings optimize PA linearity and efficiency.
• LGA: 5.5 mm x 5.5 mm x 0.72±0.06 mm
• Fully programmable MIPI RFFE V2.1 control
• 16 low loss/high linearity/high isolation TRx switch ports
• High Efficiency (inclusive of coupler and diplexer)
- 38% GSM850 35%DCS1800
- 38% GSM900 35%PCS1900
• Tx harmonics below –40 dBm
• Integrated broadband directional coupler
• Downlink inter-band CA support with built-in antenna diplexer
• Built-in IEC-compliant antenna ESD protection
• High impedance control inputs and low standby current
• Current limiting and overvoltage protection for ruggedness and extended battery life
• Power control circuitry built-in
• Cellular handsets encompassing Quad-Band
• GSM/EDGE, Dual-Band TD-SCDMA, and TDD LTE
- Class 4 GSM850/900
- Class 1 DCS1800/PCS1900
- Class 12 GPRS multi-slot operation
- Linear EDGE operation
- TD-SCDMA/TDD-LTE Bands 34/39
• Carrier Aggregation (CA)
- GROUPTX Module
- FUNCTIONTx-Rx Front-End Module for Quad-Band GSM/GPRS/EDGE w/16 Linear TRx Switch Ports-Dual-Band TD-SCDMA, TDD LTE Band 39
- PACKAGELGA 5.5×5.5×0.72mm
