OM8775S-15
Description
Features
Applications

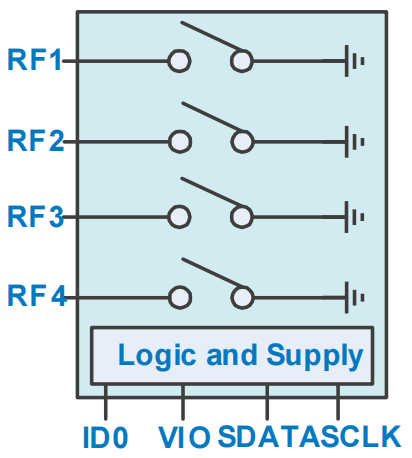

The OM8775S-15 is a 4xSPST switch designed for antenna/impedance tuning applications which require high voltage handling capability. All RF path performance is enhanced with low on state resistance, low off state capacitance, and very high RF voltage handling capability The OM8775S-15 is a 4xSPST switch with a Mobile Industry Processor Interface (MIPI). VDD Supply is not required in OM8775S-15. The OM8775S-15 is manufactured in a compact, 10-pin 1.1 x 1.5 x 0.40 mm package. A functional block diagram is shown in Figure 1.
• High peak voltage handling: 45 V
• Low Ron and Coff: 1.2 Ohm/120 fF
• Single VIO supply, no VDD
• >2kV HBM ESD Protection on all pins.
• Antenna tuning
• Impedance tuning
• Band switching
Parameter
- GROUPTuner Switch
- FUNCTION0.1~6.0 GHz 4*SPST, 45V, MIPI
- PACKAGELGA 1.1×1.5×0.40mm
